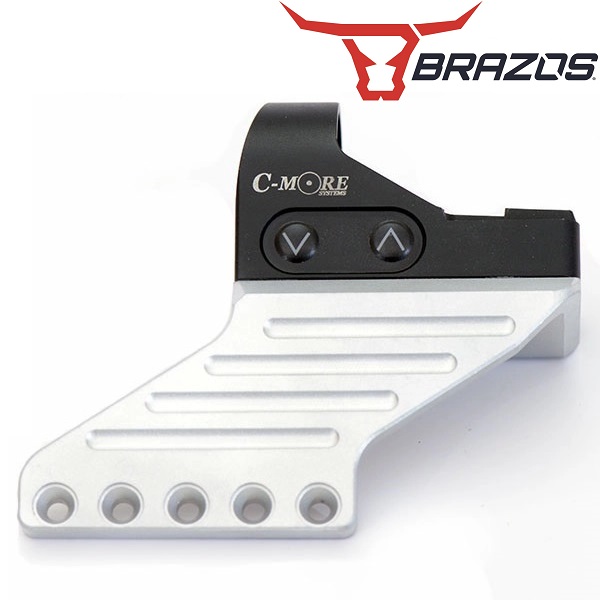

This scopemount is specifically designed for mounting the compact C-More RTS2 scope to your pistol. To reduce cracks and enhance strength and rigidity, all corners as well as the 90-degree junction between the top plate and the side plate are radiused. The side plate is fluted to reduce weight. Hardened steel locating pins ensure that the scope remains locked down square and fixed in position. The mount positions the scope far enough back on the slide and out of the path of the blast so that no blast shield is necessary.
The mount is designed so that the scope is aligned with the center of your barrel. It is available in two widths: 0.830″ for mounting on a standard frame and 0.920″ for mounting to a wide frame. Both sizes are available with drilled side holes for standard mounting. The hole pattern is C-More plus 2 — five holes on 0.375″ centers. The narrower model for a standard frame is also available undrilled for a custom application. The mount has an angle of approx. 3/4 degree built in so that you can drill the frame mounting holes parallel to the top of the frame and the scope mounting surface will be parallel with the top of the slide. Full mounting instructions are included. Screws and torx key are provided with the mount.
